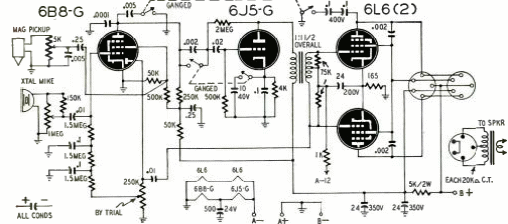

12 V Amplifier (T1209E)



Found in Radio Craft January 1947, this 4-valve circuit has good power output and is intended for portable battery-powered applications. The circuit has input for phono captor and microphone.
