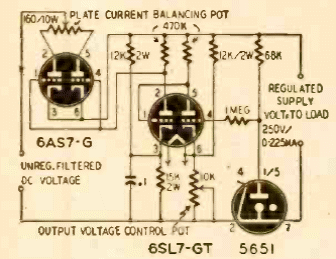

This circuit of a voltage stabilizer for tube circuits was found on a Radio Craft from August 1948. The circuit uses two common double tubes and a voltage regulator valve of the time. The output voltage is 250 V with current up to 225 mA.
Stabilized power supply (T1299E)
