Walkie Talkie for 2.5m (T780E)

Details
Written by: Newton C. Braga

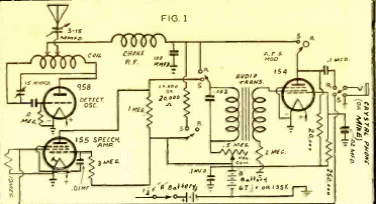

This transceiver circuit for the 2.5 meter range was found in documentation from 1941. The antenna is 4 feet long and the range depends on propagation conditions,and can reach several kilometers. The circuit is powered by batteries.
