45W Amplifier (T498E)

Details
Written by: Newton C. Braga

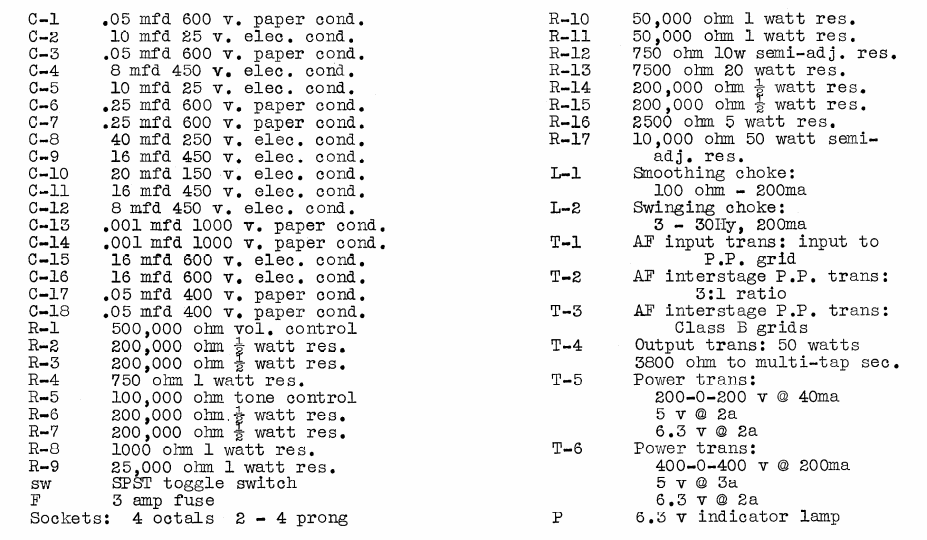

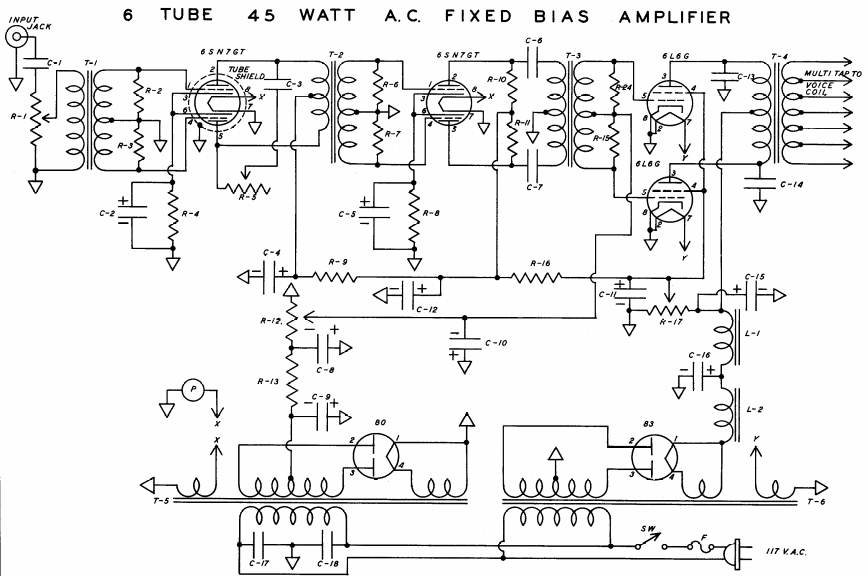

This amplifier with fixed AC bias was found in a 1947 documentation. The circuit uses two transformers in the power supply and two full-wave rectifier tubes.
