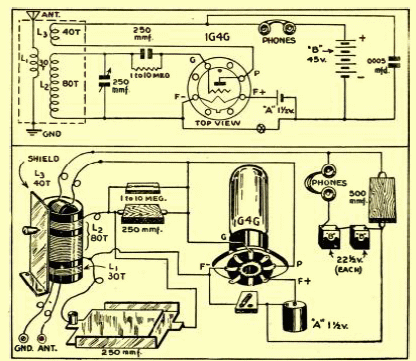

Found in a publication from the 1940s, this regenerative receiver tunes frequencies that depend on the coils. The number of turns for a 2 to 2.5 cm shape without a core is given. Listening can be through high impedance headphones (above 2000 ohms). The circuit is powered by batteries, but a power source can be used.
