Balanced Voltmeter (T947E)

Details
Written by: Newton C. Braga

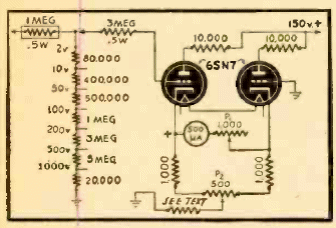

This circuit was found in a Radio Craft from May 1945. The circuit has several voltage ranges with an input impedance of 20 M ohms, given by the input resistive network. It can be used with a common analogue multimeter in the 100 uA range.
