10W Amplifier with 6 tuber (T492E)

Details
Written by: Newton C. Braga

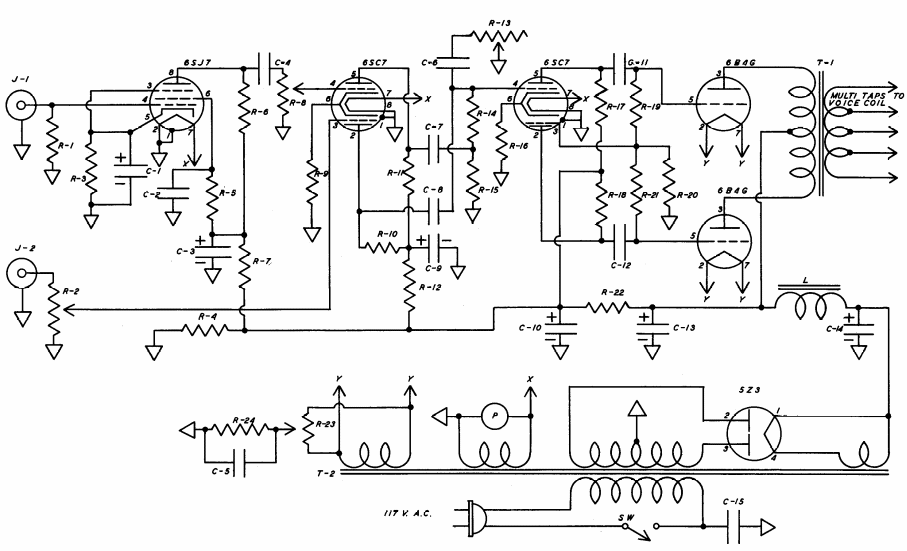

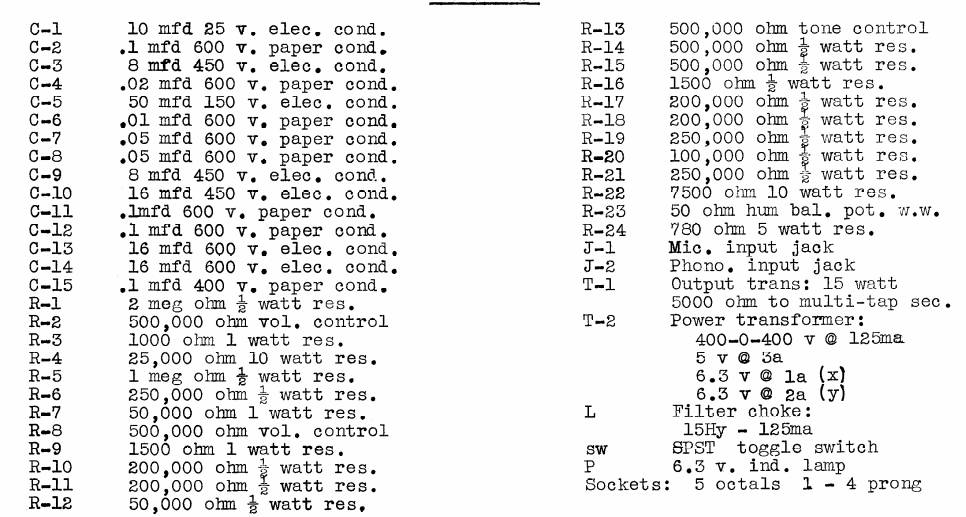

We found this 6-tube amplifier in a 1947 publication. It is a Public Address amplifier with excellent performance using triodes on the output.










| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
