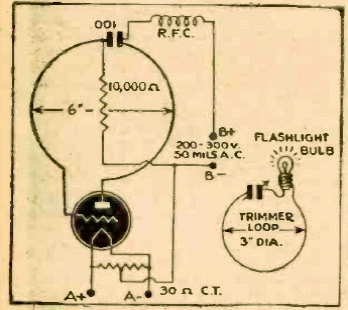

This circuit for frequencies above 300 MHz was found in a magazine from 1943. The tube is the 45 and the power supply is made with a voltage of 200 to 300 V. Note that the coil is a metal link with the indicated measurements and there is a ring of Hertz to indicate its operation.
