10W Portable Amplifier (T859E)

Details
Written by: Newton C. Braga

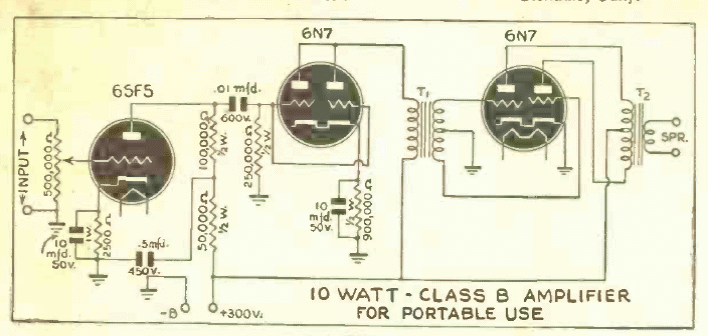

Found in a 1943 publication this class B amplifier has good performance. The circuit does not include the power supply and has only one input.
