Simple radio (T1093E)
- Details
- Written by: Newton C. Braga

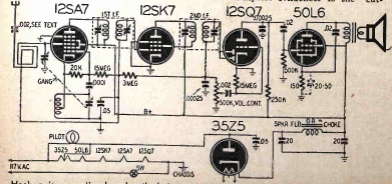

This basic 5-tube radio was found in a 1946 documentation. It is one of the most popular circuits at the time with series filaments and transformerless power supply. The antenna was loop.
