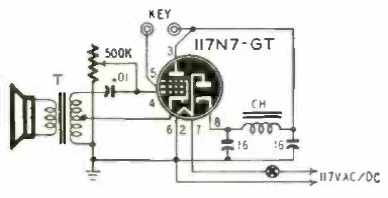

With only one dual tube, this oscillator has a speaker output. We found the circuit in Radio Craft in September 1948. The circuit has the frequency adjusted by a potentiometer.
Sinple telegraphy oscillator (T1325E)
- Details
- Written by: Newton C. Braga
