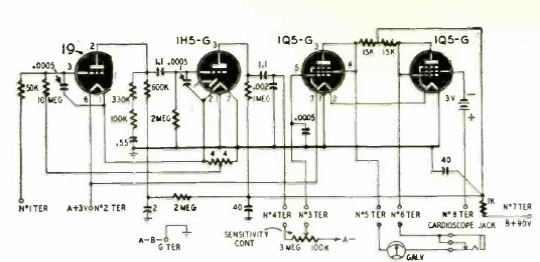

This 1948 circuit was found on a Radio Craft and employs 4 tubes. Supply voltages are indicated and certainly filtering problems should be watched carefully, particularly power grid noise.
Tube electrocardiograph (T1312E)
- Details
- Written by: Newton C. Braga
