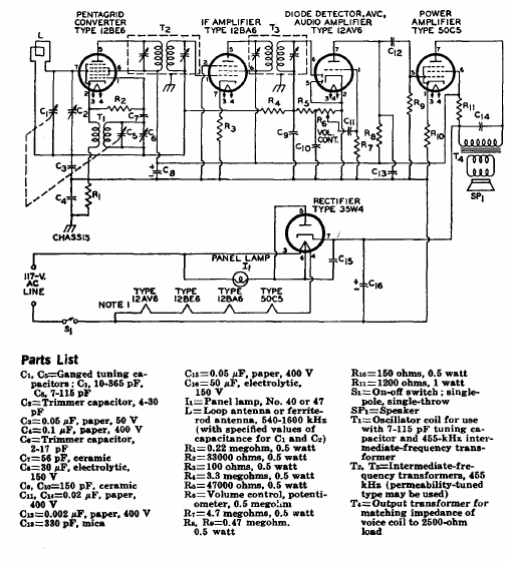

We find this traditional circuit that appears elsewhere in this section, but from other sources, in a 1975 RCA tube manual. The receiver has the filaments in series and the IF of 455kHz.
5-Tube AC-DC Receiver (T1538E)
- Details
- Written by: Newton C. Braga
