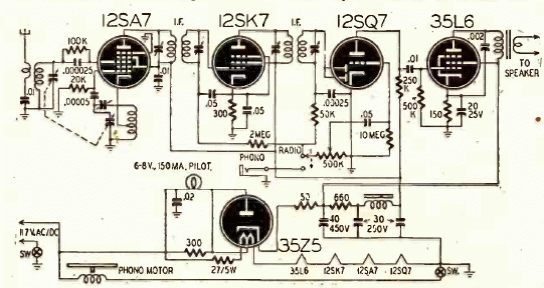

This conventional 5-tube super heterodyne receiver circuit was found on a Radio Craft from 1947. The circuit uses a transformerless source and has input for turntables. The output is on loudspeaker and medium wave tuning.
5-tube Receiver (T1163E)
- Details
- Written by: Newton C. Braga
