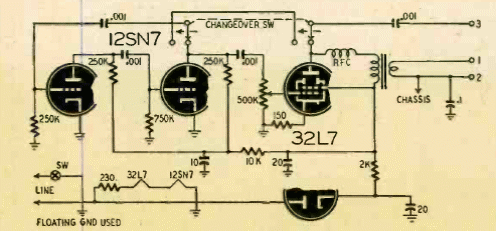

Found on a September 1947 Radio Craft, this circuit uses dual tubes and is powered directly from the mains. The power supply is transformerless, which requires careful handling, although the signal output is isolated by a transformer.
Signal Tracer and Injector (T1189E)
- Details
- Written by: Newton C. Braga
