Dual Tuning Reflex Receiver (T1562E)

Details
Written by: Newton C. Braga

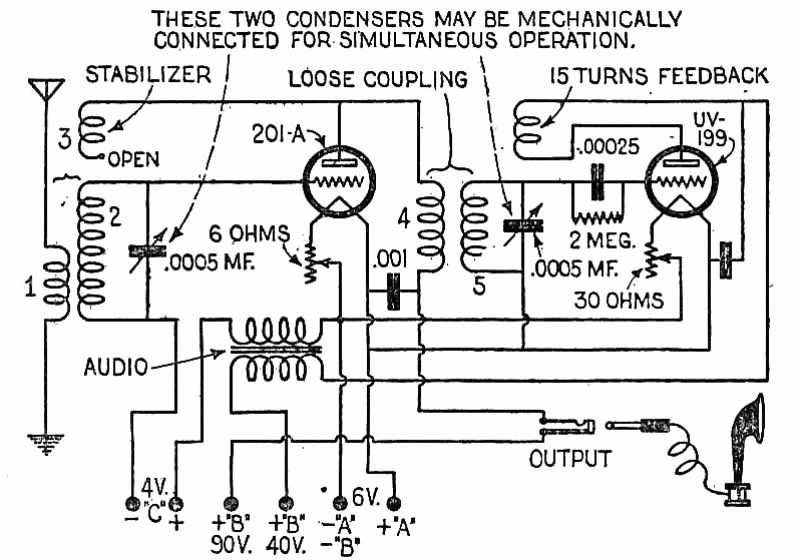

Found in a 1924 book by Gernsback, this circuit uses a double variable capacitor, a component not very common at the time. Listening was done on a loudspeaker at the time.
