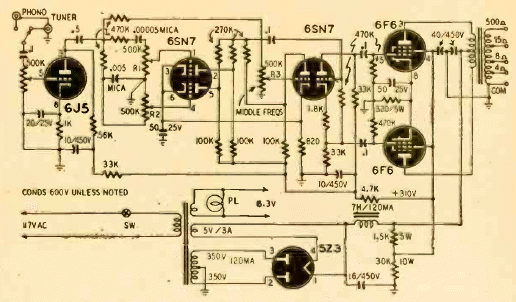

We found this circuit in the Radio Craft magazine of August 1948. The 6-tube circuit has good power with push-pull output. Note the use of dual tubes in the preamp and phase-shifting stage.
Phonograph Amplifier (T1304E)
- Details
- Written by: Newton C. Braga
