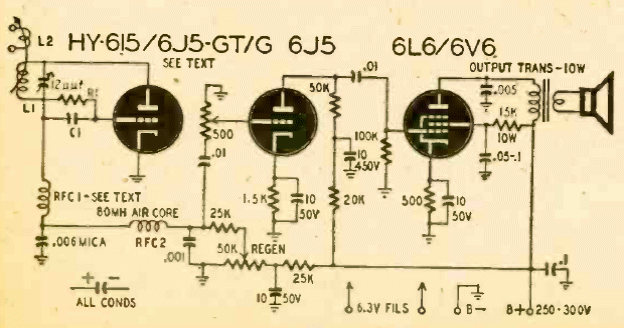

This 3-tube medium wave receiver is very sensitive being supplied with the indicated voltages. The circuit is from a March 1948 Radio Craft. Its output is on loudspeaker.
Small Receiver (T1250E)
- Details
- Written by: Newton C. Braga
This 3-tube medium wave receiver is very sensitive being supplied with the indicated voltages. The circuit is from a March 1948 Radio Craft. Its output is on loudspeaker.
