Single Mixer (T1246E)

Details
Written by: Newton C. Braga

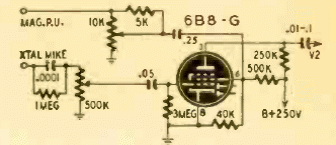

This mixing stage with a tube was found in a Radio Craft from March 1948. The supply voltages are indicated and can be obtained from the amplifier with which the circuit will operate.
