Bench Top Audio Oscillator (T1291E)

Details
Written by: Newton C. Braga

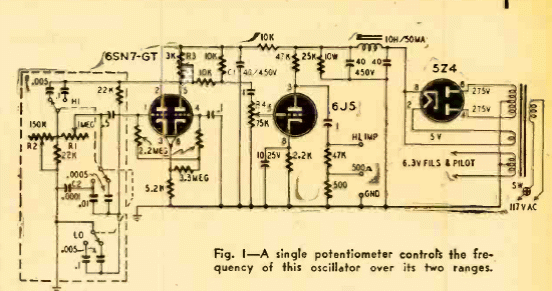

This circuit was found in a Radio Craft from August 1948. With 3 tubes, including the rectifier, it generated signals in two wavebands selected by a switch. Note the use of a twin-T to generate sinusoidal signals.
