Photometer (T1173E)

Details
Written by: Newton C. Braga

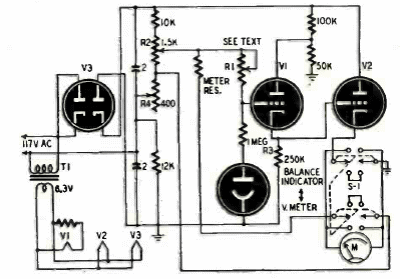

This tube circuit is from a 1947 publication. The photoelectric cell is a period type that came in a tube-like housing. The sensitive element was selenium. The circuit is powered by the mains.
