Miniature Amplifier (T1211E)

Details: Written by: Newton C. Braga

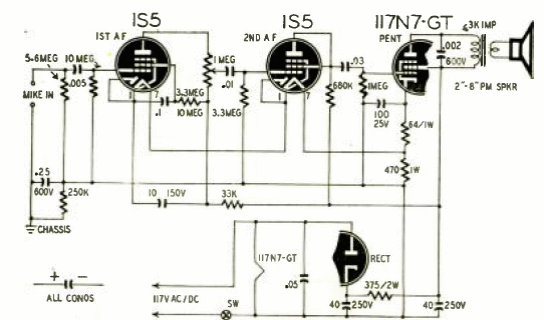

This miniature tube amplifier was featured in Radio Craft January 1947. It is a low watt amplifier that can be used in radios, intercoms or turntables.
