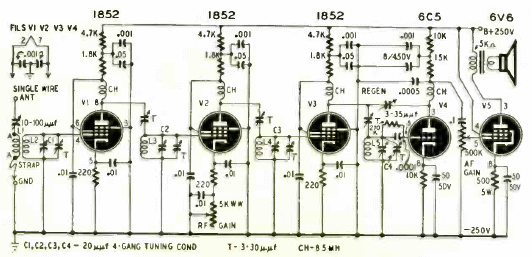

This communications receiver circuit uses capacitive coupling between the stages. The 5-tube circuit has speaker output and power supply is not given.
RC coupling Receiver (T1321E)
- Details
- Written by: Newton C. Braga
This communications receiver circuit uses capacitive coupling between the stages. The 5-tube circuit has speaker output and power supply is not given.
