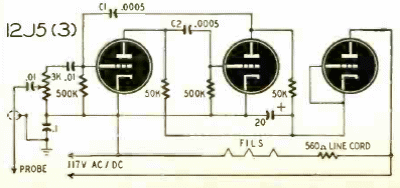

This astable multivibrator circuit was found in Radio Craft January 1948. It was intended to be used in troubleshooting audio circuitry. Note that the circuit is not isolated from the power grid, requiring great care in use.
Signal injector (T1223E)
- Details
- Written by: Newton C. Braga
