UV201A reflex receiver (T1558E)

Details
Written by: Newton C. Braga

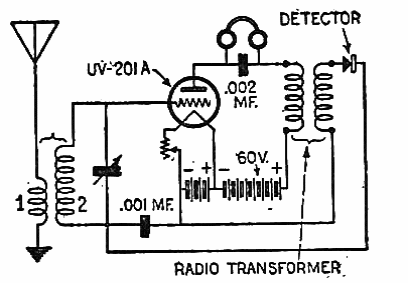

Found in a 1924 Gernsback publication this circuit makes use of a triode tube of the time. The phone is high impedance and powered by battery.
