Grid dip (T1741E)

Details
Written by: Newton C. Braga

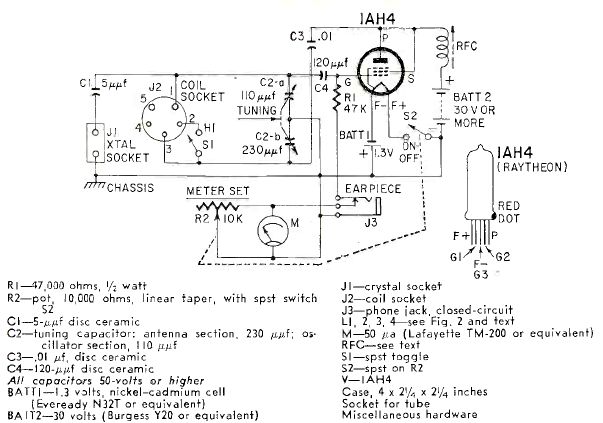

This grid dip meter circuit was found in Radio Electronics magazine from May 1960. The circuit is battery powered and has the coils fitted into a socket.
