Timer (T1171E)
- Details
- Written by: Newton C. Braga

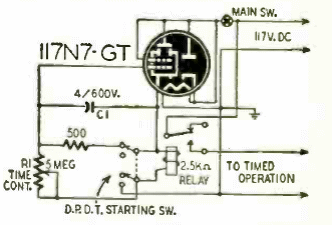

This old timer uses a 117 V tube and a high voltage relay on its output. The time is given by C1. The indicated value is for existing types at the time. Note the capacitor's insulation voltage.
