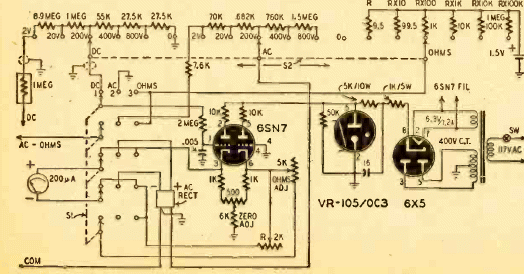

This circuit was obtained from a Radio Craft in July 1948. The 3-tube circuit is powered by a transformer source. The instrument is 100 uA and the scales are switched by a selector switch.
Electronic voltmeter (T1287E)
- Details
- Written by: Newton C. Braga
