Geiger Counter (T1779E)

Details
Written by: Newton C. Braga

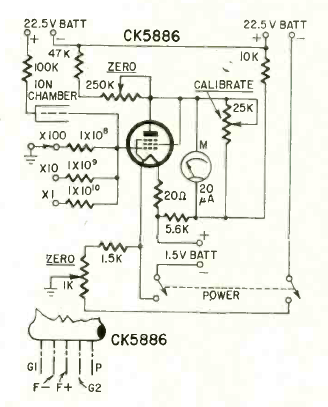

This simple battery-powered circuit was found in Radio Electronics magazine of September 1962. The circuit provides indication on analog instrument.
