Anemometer (T1264E)

Details
Written by: Newton C. Braga

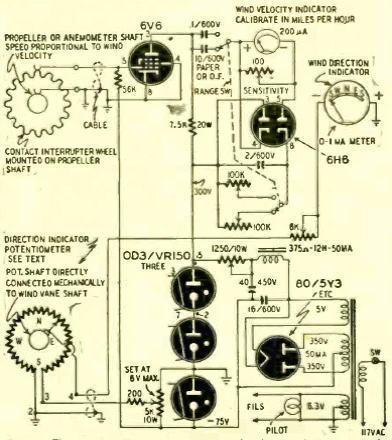

This circuit indicates wind speed and also its direction using mechanical transducers. The circuit is from a Radio Craft from May 1948. The power supply comes from a transformer and voltage regulating tubes are used.
