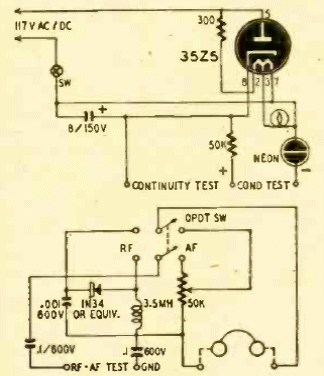

Signal Tracer and Capacitor Tester (T1241E)

Details
Written by: Newton C. Braga



This mains powered two-in-one instrument was found in a Radio Craft from March 1948. The headphone must be high impedance.
