KT66 Amplifier (T1677E)

Details
Written by: Newton C. Braga

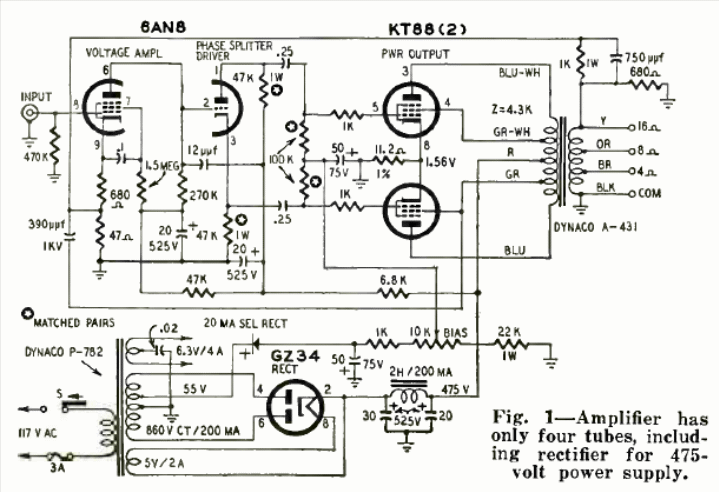

With a 475 V supply, this amplifier published in Radio Electronics magazine in January 1958 offered good power. The amplifier used 4 tubes.
