Signal Tracer (T1581E)

Details
Written by: Newton C. Braga

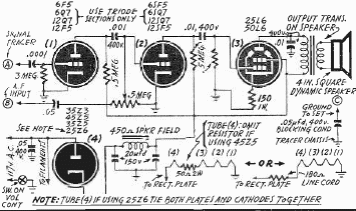

This signal tracer was obtained from a Radio Electronics from 1947. The 4-valve circuit is powered by a transformerless direct source.
