Miniature Oscillator (T1262E)

Details
Written by: Newton C. Braga

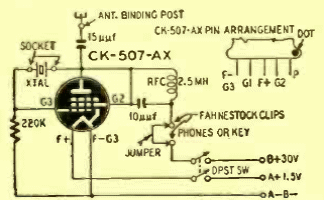

This one tube circuit is small enough to be attached to your battery. The circuit is from a May 1948 Radio Craft. The magazine article tells you how to build it up as an experimental transmitter.
