3-tubee reflex receiver (T1658E)

Details
Written by: Newton C. Braga

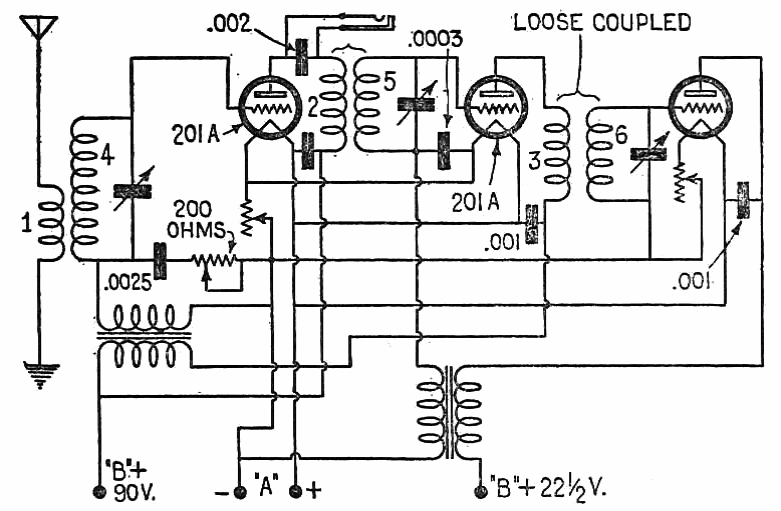

Found in a 1924 documentation, this circuit is powered by 3 batteries, two of which are high voltage. The output is a high impedance headphone jack.




| Clique na imagem para ampliar |
