3-tube reflex receiver (T1657E)

Details
Written by: Newton C. Braga

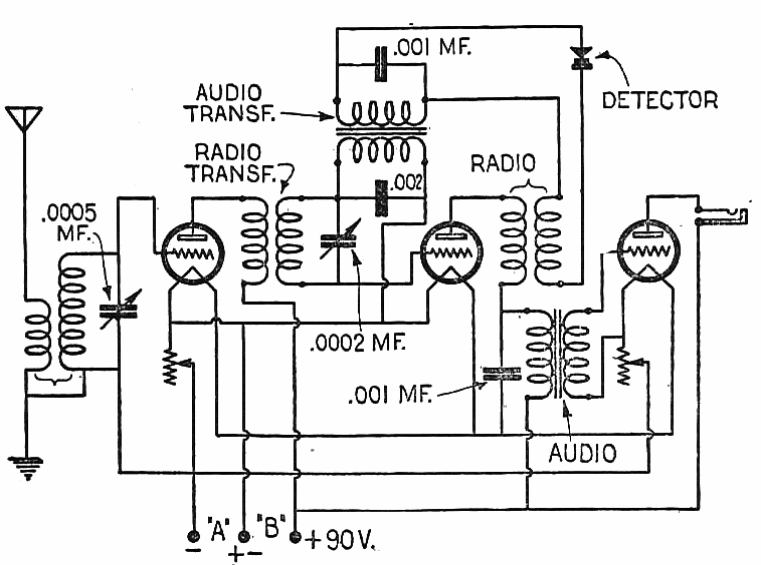

This circuit was found in a publication by Edelman from 1924. The power comes from the battery and the listening is through a high-impedance headphone.




| Clique na imagem para ampliar |
