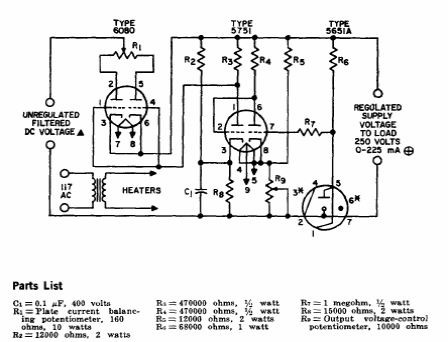

Stabilized Series Regulator (T1553E)

Details
Written by: Newton C. Braga



We found this circuit in a 1975 RCA tube manual. The circuit does not include the power supply and the maximum current is 225 mA.
