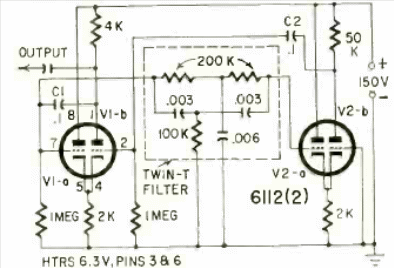

This double T oscillator appeared in Radio Electronics magazine in March 1058. It uses 3 tubes, one of which is double. The supply voltage is indicated. The frequency depends on the double T.
Stabilized Oscillator (T1715E)
- Details
- Written by: Newton C. Braga
