2-tube Regenerative Receiver (T1205E)

Details
Written by: Newton C. Braga

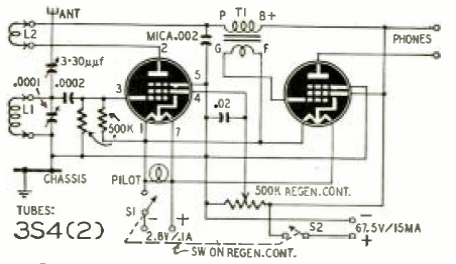

This circuit was found in Radio Craft in January 1947. Tuned ranges iare frequency ranges from 5 to 500 meters depending on the coil fitted in the socket. The circuit requires a good external antenna and listens to high impedance headphones.
