Neon Oscillator (T1238E)

Details
Written by: Newton C. Braga

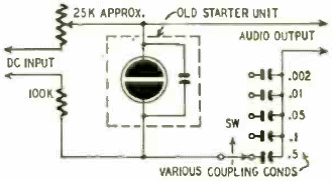

This simple relaxation oscillator circuit was found in a 1948 publication. Frequencies are selected by capacitors and potentiometer adjustment.
