Tube amplifier on printed circuit board (T1697E)

Details
Written by: Newton C. Braga

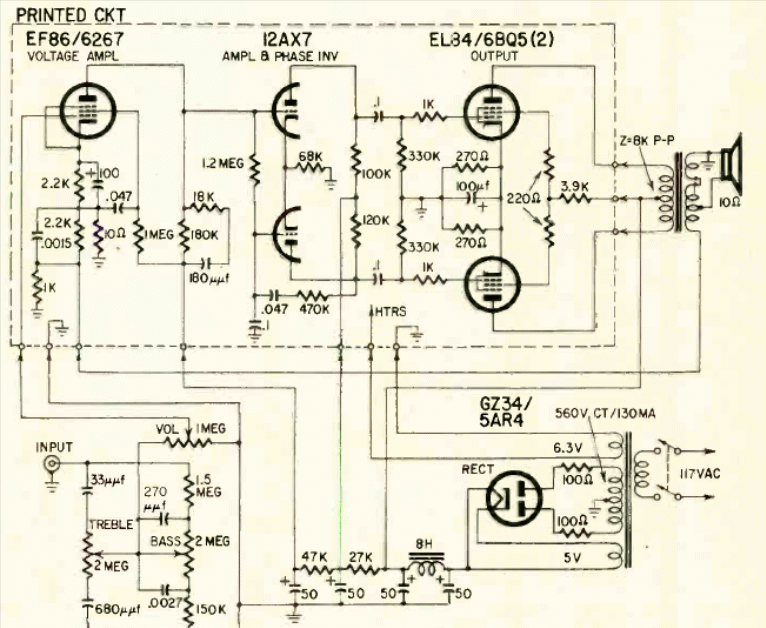

This amplifier with the EL84 tube is a European commercial type from Corpim mounted on a printed circuit board. The diagram appeared in a September 1958 Radio Electronics magazine.
