2-battery relflex receiver (T1656E)

Details
Written by: Newton C. Braga

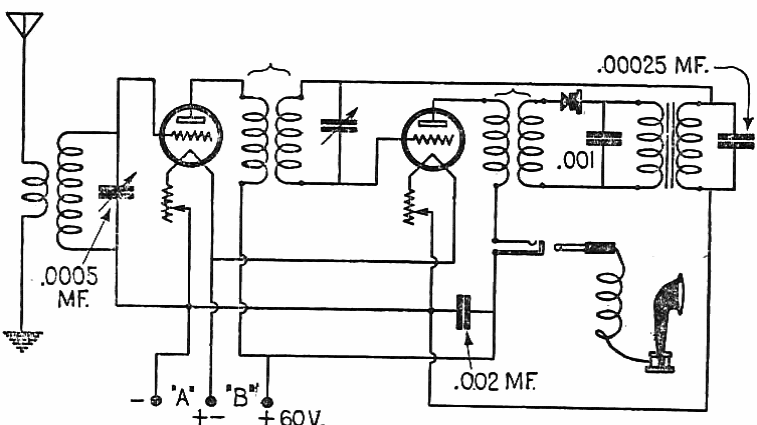

This 1924 receiver uses a battery for the tube filaments and a high voltage battery for the amplifier and detector circuit. The speaker is kind of high impedance era.
