Sophisticated tube tester (T1334E)

Details
Written by: Newton C. Braga

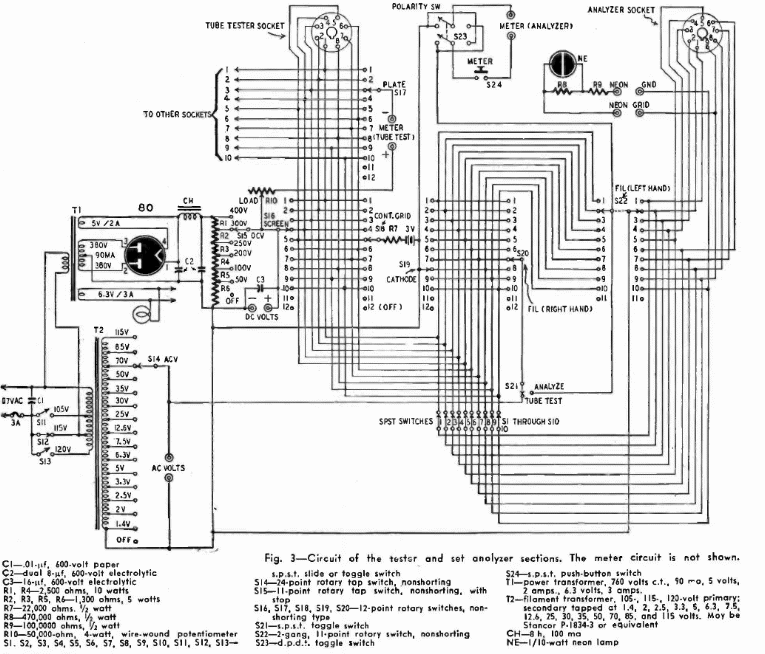

We have many tube tester circuits in this section. This one came out on a Radio Electronics from 1949 and has a very elaborate configuration with toggle switches.
