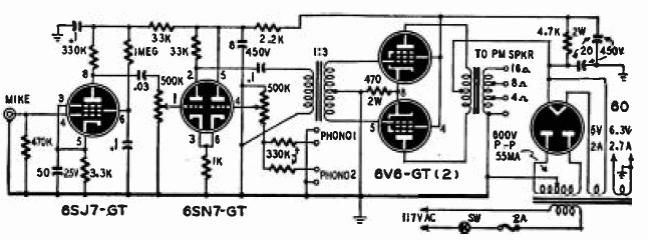

This circuit was taken from an April 1949 Radio Electronics. The circuit uses 5 tubes, one double and one full wave rectifier. Note the transformer with outputs of various impedances. The amplifier was for microphone.
