Amplifier for microphone and phonograph (T1546E)

Details
Written by: Newton C. Braga

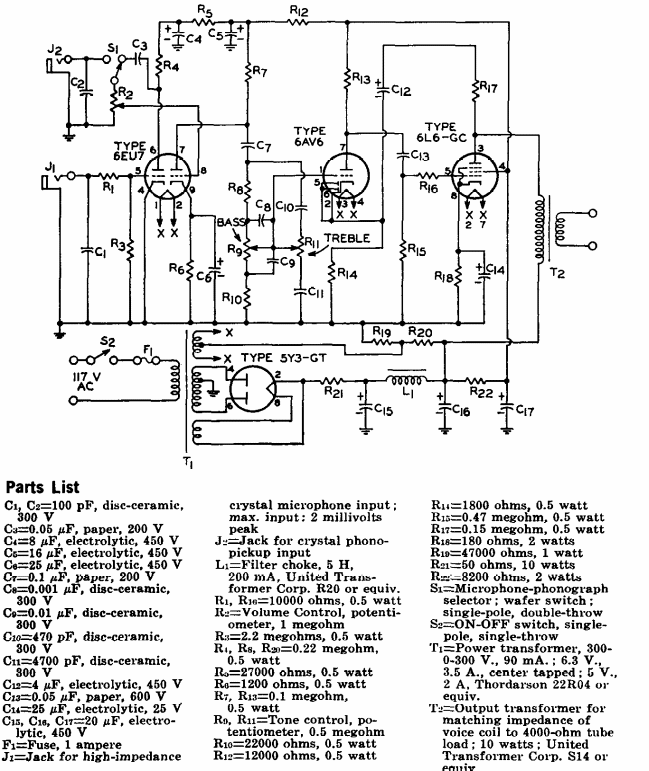

We found this circuit in the 1975 RCA tube manual. The circuit has 8 watts of output power. Power supply is included.




| Clique na imagem para ampliar |
