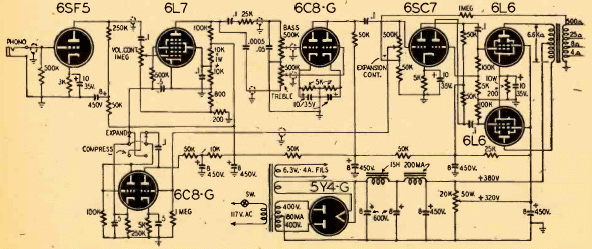

This good power amplifier came out in a Radio Craft from December 1947. The circuit has a push-pull output and steps for com and equalization control. Power comes from a power supply with a transformer.
Phonograph Amplifier (T1202E)
- Details
- Written by: Newton C. Braga
