Stereo FM Adapter (T1768E)

Details
Written by: Newton C. Braga

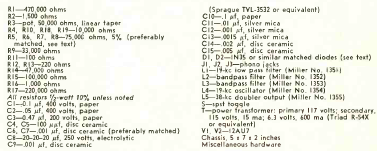

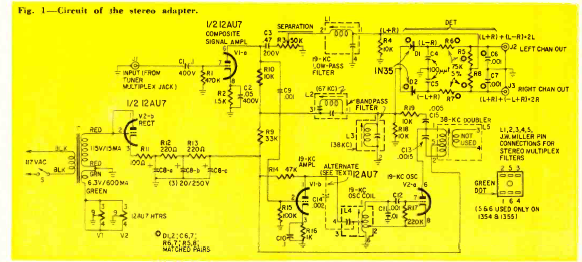

This circuit decodes an FM stereo signal. The circuit was published in Radio Electronics magazine in December 1961. Details of the coils are given in the material list.
