Signal Tracer and Signal Injector (T1187E)

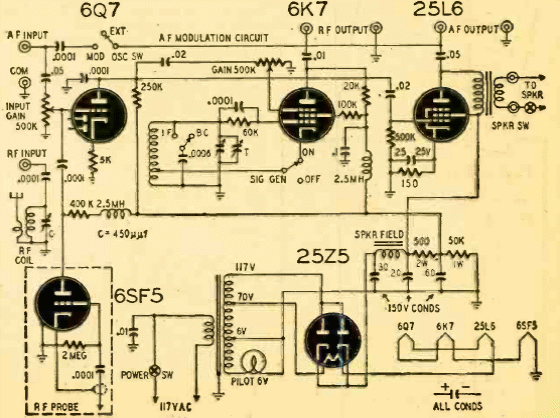

Found in the November 1947 Radio Craft magazine this useful 4-tubes instrument had many features. The circuit used a transformer power supply, for greater safety, and had the series filaments fed by the high voltage winding of the transformer.
