Transmitter for wired remote control (T1332E)

Details
Written by: Newton C. Braga

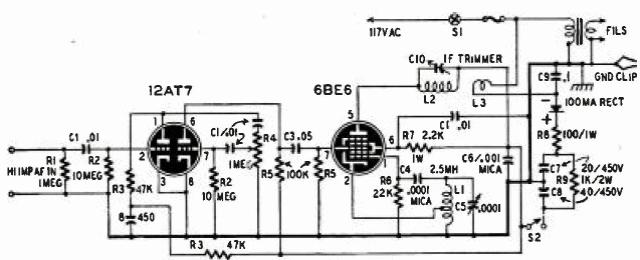

This remote control that uses the power grid to transmit signals came out on a Radio Electronics from 1949. The circuit has two tubes and operates at 455 kHz. Power comes from the power grid itself.
