Transmitter for beginner (T1523E)

Details
Written by: Newton C. Braga

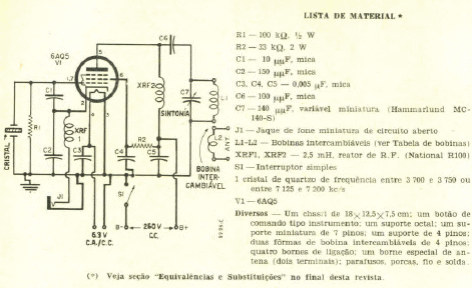

This telegraph transmitter for radio amateurs was found in an August 1956 Popular Electronics magazine. The source is not given, and the indicated range is 80 meters.
